How to Calculate the Correct Spring Tension for Your Cable Reel
In many industrial environments, cable reels are used to manage power cables for moving equipment such as cranes, automated machines, and production systems. A well-designed cable reel keeps cables organized and prevents damage caused by dragging, twisting, or excessive bending.
One of the most important factors in a spring-driven cable reel is the correct spring tension. If the tension is too weak, the cable may not retract properly. If the tension is too strong, the cable may be pulled too aggressively, leading to premature cable wear or connector damage.
For engineers and purchasing teams selecting cable management systems, understanding how to calculate the correct spring tension is essential for ensuring safe and reliable operation.
How do you calculate cable reel spring tension?
Cable reel spring tension is typically calculated by estimating the total cable weight and multiplying it by a safety factor between 1.2 and 1.5. The spring force must be strong enough to retract the cable smoothly but not so strong that it damages the cable or connectors. Engineers should also consider factors such as cable length, installation angle, and reel drum diameter when determining the correct spring tension.
Steps to estimate cable reel spring tension
- Determine the total cable weight.
- Measure the maximum cable length.
- Apply a safety factor (1.2–1.5).
- Consider the installation angle and friction.
- Test and adjust the spring preload if necessary.
What Is Spring Tension in a Cable Reel?

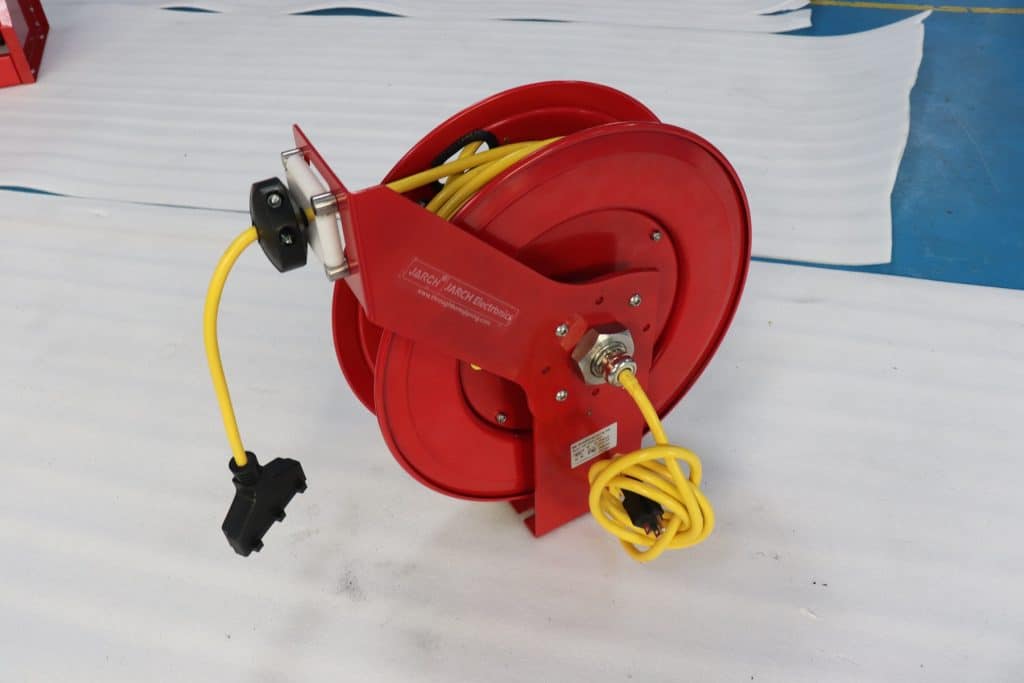

Spring tension refers to the mechanical force generated by the internal spring mechanism inside a cable reel. When a cable is pulled out, the spring stores mechanical energy. When the cable is released, the spring rotates the reel drum and retracts the cable.
Many industrial facilities use Spring Cable Reels because they provide automatic cable retraction without requiring motors or external power.
The key challenge is balancing spring force so the cable retracts smoothly without creating excessive pulling force.
Key Factors That Affect Spring Tension Calculation
Cable Weight
The weight of the cable is the most important factor when calculating spring tension. Heavier cables require stronger spring force to ensure reliable retraction.
Cable Length
Longer cables require more tension because the spring must retract the entire cable length back onto the reel drum.
Installation Angle
If the cable moves vertically or upward, the spring must overcome gravity as well as cable weight.
Reel Drum Diameter
The diameter of the reel drum affects the torque required to wind the cable.
Industrial systems commonly use Cable Reels designed to balance drum size, torque, and cable capacity.
Basic Formula for Estimating Spring Tension
A simplified engineering method for estimating spring tension is:
Spring Tension = Cable Weight × Safety Factor
Typical safety factor range: 1.2 – 1.5
Example calculation:
- Cable weight = 8 kg
- Safety factor = 1.3
- Required tension ≈ 10.4 kg pulling force
When Motorized Cable Reels Are a Better Option
Spring-driven cable reels work well for light and medium cable loads. However, when cable weight or cable length becomes very large, spring systems may not provide enough control.
In these situations, engineers often use Motorized Cable Reels, which use electric motors to control cable winding speed and tension.
When Manual Cable Reels Are Suitable
For smaller systems or portable power equipment, automatic tension systems may not be necessary. In these situations, Manual Cable Reels provide a practical and cost-effective cable management solution.
Summary Table
| Factor | Impact on Tension | Recommendation |
|---|---|---|
| Cable weight | Heavier cables require stronger tension | Calculate cable weight before reel selection |
| Cable length | Long cables need higher pulling force | Select larger spring capacity |
| Installation angle | Vertical movement increases load | Include gravity in calculations |
| Drum diameter | Smaller drums increase torque demand | Choose correct reel drum size |
Frequently Asked Questions
How do you calculate cable reel spring tension?
Cable reel spring tension is usually calculated by estimating cable weight and multiplying it by a safety factor between 1.2 and 1.5.
What factors affect spring tension?
Key factors include cable weight, cable length, installation angle, drum diameter, and operating conditions.
What happens if the tension is too strong?
Excessive spring tension can cause cables to retract too quickly and increase cable wear.
What happens if tension is too weak?
If tension is too weak, the cable may not retract fully and could remain loose on the floor.
When should motorized cable reels be used?
Motorized cable reels are recommended for heavy cables, long cable lengths, and large industrial systems.
