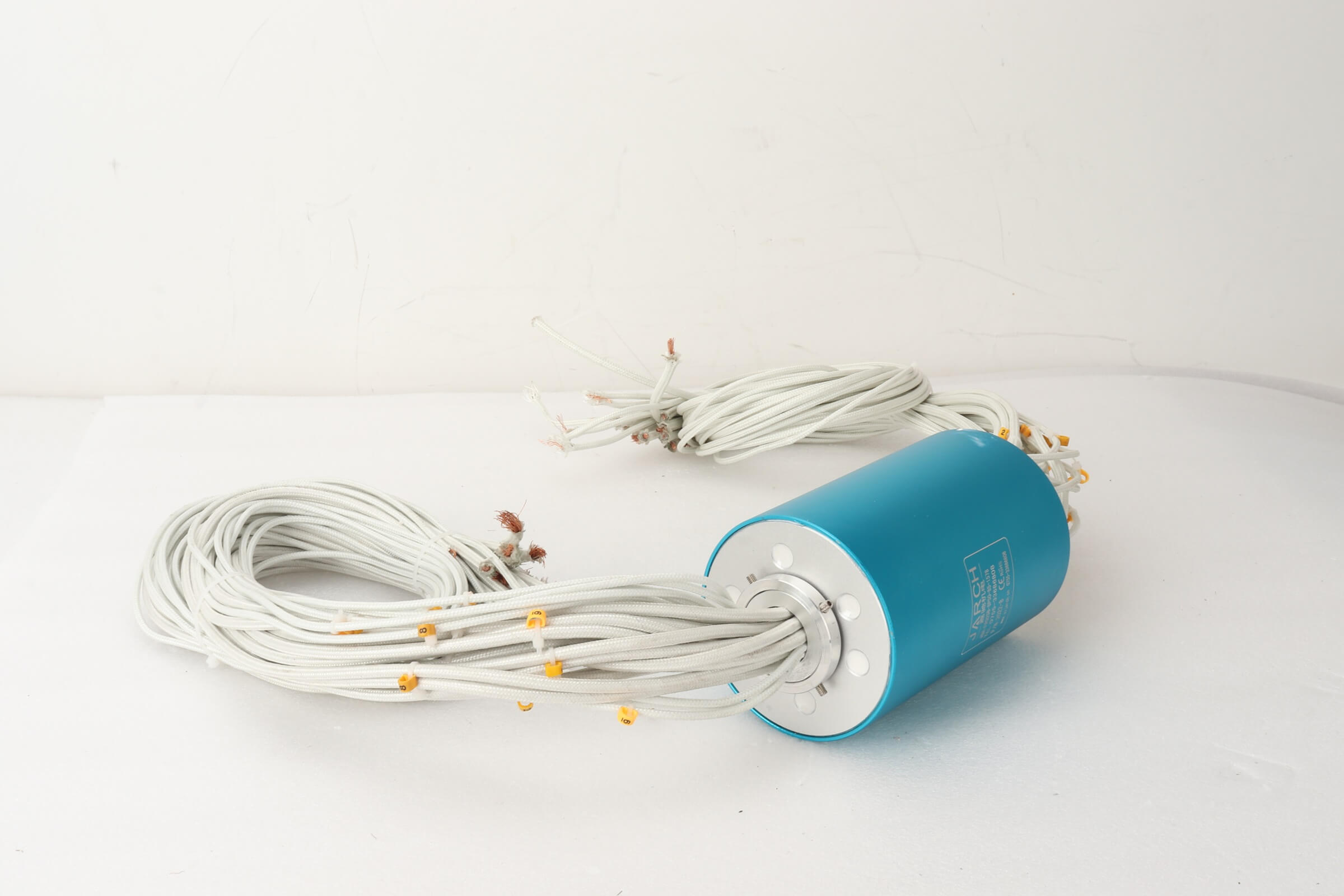

High-Precision Thermocouple Slip Rings (Type K, J, T, E, RTD)
Eliminate temperature measurement drift on rotating shafts, rollers, and heated molds. Designed with matched thermocouple extension alloys and precious metal brush contacts to ensure true micro-volt signal continuity without thermal EMF noise.
Why Standard Slip Rings Fail in Temperature Measurement
A thermocouple generates a tiny voltage (microvolts, µV) proportional to the temperature difference between its hot junction and cold junction. When standard copper or brass slip rings are inserted into the thermocouple circuit, the contact between dissimilar metals creates additional internal Seebeck junctions.
As the shaft rotates, friction generates heat inside the slip ring housing. This temperature gradient across dissimilar metal contacts creates Parasitic Thermal EMF (stray voltage), causing temperature controller readings to drift wildly by 5°C to 30°C.
Standard Slip Rings (Unsuitable)
- Copper ring tracks create unwanted Seebeck voltage junctions.
- Frictional heating causes significant temperature reading drift.
- High electrical contact noise (> 20 mΩ) distorts micro-volt signals.
- Requires constant recalibration or external transmitter units.
JARCH Thermocouple Solution (Precision)
- Rings & leads crafted from actual thermocouple alloys (e.g., Chromel/Alumel).
- Parasitic EMF suppressed to < 2 µV across wide temperature spans.
- Gold-on-gold fiber brush technology keeps contact resistance < 5 mΩ.
- Direct connection from rotary sensor to stationary temperature controller.
Supported Sensor Types & Alloy Configurations
JARCH manufactures dedicated conductor channels matching the exact thermoelectric characteristics of your sensors:
| Sensor Type | Conductor Alloy Pair | Temperature Range | Common Applications |
|---|---|---|---|
| Type K | Chromel (+ KP) / Alumel (- KN) | -200°C to +1260°C | General industrial heating, ovens, plastics extrusion |
| Type J | Iron (+ JP) / Constantan (- JN) | -40°C to +750°C | Plastics injection molding, vacuum forming equipment |
| Type T | Copper (+ TP) / Constantan (- TN) | -200°C to +350°C | Cryogenic monitoring, food processing, lab equipment |
| Type E | Chromel (+ EP) / Constantan (- EN) | -200°C to +900°C | High EMF sensitivity applications, power plant monitoring |
| RTD (PT100 / PT1000) | 3-Wire or 4-Wire Silver-Plated Copper | -200°C to +600°C | Ultra-precise low-temp monitoring, pharmaceutical equipment |
Hybrid Customization: Power, Signals & Mechanical Mounts
In practical machinery, rotating shafts rarely carry sensor wires alone. JARCH specializes in fully integrated hybrid slip rings that combine multiple transmission requirements in a single assembly:
1. Heater Power Channels
Integrate 10A, 20A, 30A, or up to 100A+ power circuits for heating bands, cartridge heaters, and induction elements alongside sensitive sensor channels.
2. Through-Bore Structure
Central hollow shaft bore sizes (12.7mm, 25.4mm, 38.1mm, 50mm, up to 200mm) allowing passage of hydraulic lines, pneumatic pipes, or drive shafts.
3. High Environmental Sealing
Ruggedized aluminum or stainless steel 304/316 housings with IP65 or IP67 ingress protection against dust, water spray, and oil mist.
4. High Temperature Isolation
Special internal heat insulation barriers allowing operation in ambient surroundings up to +150°C (+302°F) near hot rollers and furnaces.
Detailed Engineering Specifications
| Thermal Voltage Noise (EMF) | < 2 µV @ 300 RPM |
| Contact Resistance Fluctuations | < 5 mΩ @ 50 RPM |
| Operating Speed Range | 0 ~ 300 RPM (Standard); Custom designs up to 2000 RPM |
| Dielectric Strength | 500VAC @ 50Hz between power and thermocouple channels |
| Insulation Resistance | ≥ 500 MΩ @ 500VDC |
| Housing Materials | Anodized Aluminum Alloy / Stainless Steel 304 or 316L |
| Lead Wire Type | ANSI / IEC Color-coded Thermocouple Compensation Cables (PTFE insulated) |
| Lead Wire Length | 300mm standard (Custom lengths & connectors upon request) |
| Operating Temperature | -40°C to +80°C (Standard); High-temp design up to +150°C |
Target Industrial Applications
Rotary sealing jaws, heated roll laminators, blown film dies, thermoforming carousels.
Continuous rotary drying cylinders, calender rolls, non-woven fabric bonding rollers.
Rotary vulcanizing presses, mixing mill rollers, tire curing drums.
Rotary heat-treating kilns, brake disc dynamometers, gas turbine rotor test rigs.
Request a Customized Engineering Quote in 24 Hours
To help our engineering team design the exact slip ring for your equipment, please provide:
- Thermocouple Sensor Type (e.g., Type K, Type J, or RTD PT100) and number of channels.
- Heater power requirements (Voltage & Amperes per circuit), if integrated.
- Mechanical mounting preference (Capsule, Shaft-end, or Hollow Bore ID).
- Operating rotation speed (RPM) and working temperature surroundings.
Send drawings or specs to: info@slipringsupplier.com
