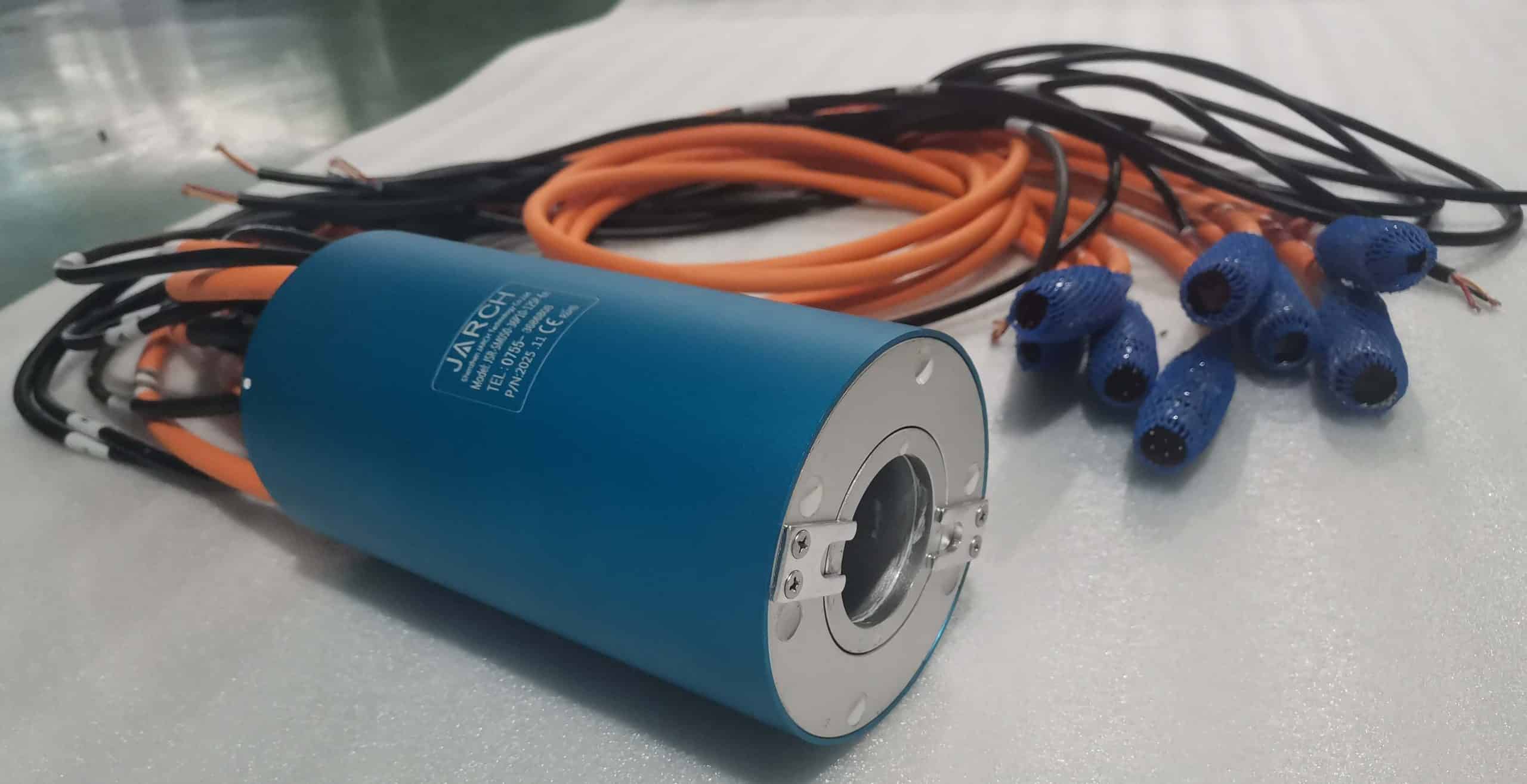

Servo Encoder Slip Rings
- No Error Code: Shields signals from servo motor noise.
- Fits All Protocols: Works with Absolute (EnDat, BiSS-C, SSI) and Incremental systems.
- Smooth Rotation: Low resistance drop using Gold-to-Gold contacts.
- Flexible Choice: Easy to combine with air/water joints or power lines.
Works Great With Major Servo Brands
How JARCH Helps Stop Servo Machine Errors
1. Metal Shielding (Blocks Noise)
Problem: Motor power noise ruins encoder signals, causing alarm codes on the servo drive.
JARCH Fix: We build metal walls inside to separate power wires from signal wires, plus extra shielding wires.
2. Gold Contacts (No Data Loss)
Problem: Poor ring contacts lose signal bits while rotating, making the motor lose position.
JARCH Fix: We use real gold contact technology so the electrical connection stays stable during 360° turning.
3. Safe Wire Design (Clear Waves)
Problem: Wrong wire setup changes signal shapes and slows down encoder speed.
JARCH Fix: Specially designed wire pairs keep signal waves clean for high-speed transmission.
Full Customization Services Available
Custom Hole & Outer Size
Through-bore size from 12.7mm to 200mm+, or solid shaft design to fit your shaft perfectly.
Mixed Signal & Power
Combine high current (up to 100A), encoder signals, Ethernet, and sensor wires in one unit.
Air & Liquid Hybrid
Add 1 to 12 air or hydraulic channels (1/8", 1/4", 3/8") for pneumatic grippers.
Waterproof Protection
IP51, IP65, or IP67 sealed body options for wet, oily, or outdoor working areas.
Technical Specifications
| Category | Feature Item | Power Wires Power | Encoder Wires Signal |
|---|---|---|---|
| Electrical | Working Voltage | 0 ~ 440 V | 0 ~ 24 V |
| Current Rating | 10A, 20A, 30A, 40A / ring | 2A / ring (Shielded) | |
| Insulation Strength | ≥ 1000 MΩ | ≥ 500 MΩ | |
| Test Voltage | 1500 V AC | 500 V AC | |
| Mechanical | Working Speed | 0 ~ 300 RPM (Custom high speed up to 1200 RPM) | |
| Contact Material | Precious Gold-to-Gold Fiber Brush | ||
| House Material | Aluminum Alloy / Stainless Steel 304 or 316 | ||
| Electrical Noise | Very Low (< 0.01 Ω) | ||
| Wire Type | Silver-Plated Teflon / PVC | Double-Shielded Twisted Pair Wire | |
| Environment | Working Temperature | -40°C to +80°C (-40°F to +176°F) | |
| Working Humidity | Up to 60% RH or higher | ||
| IP Rating | IP51 standard (IP65 / IP67 optional) | ||
Where Are They Used?
Robot Arm Joints
360° turning wrists and elbows on multi-axis industrial robots.
CNC Rotary Tables
4th and 5th axis index tables driven by absolute servo motors.
Packaging Machines
High-speed bottling, labeling, and sealing machines.
Automated Warehouses
Rotary turntables and stacker cranes in smart logistics systems.
