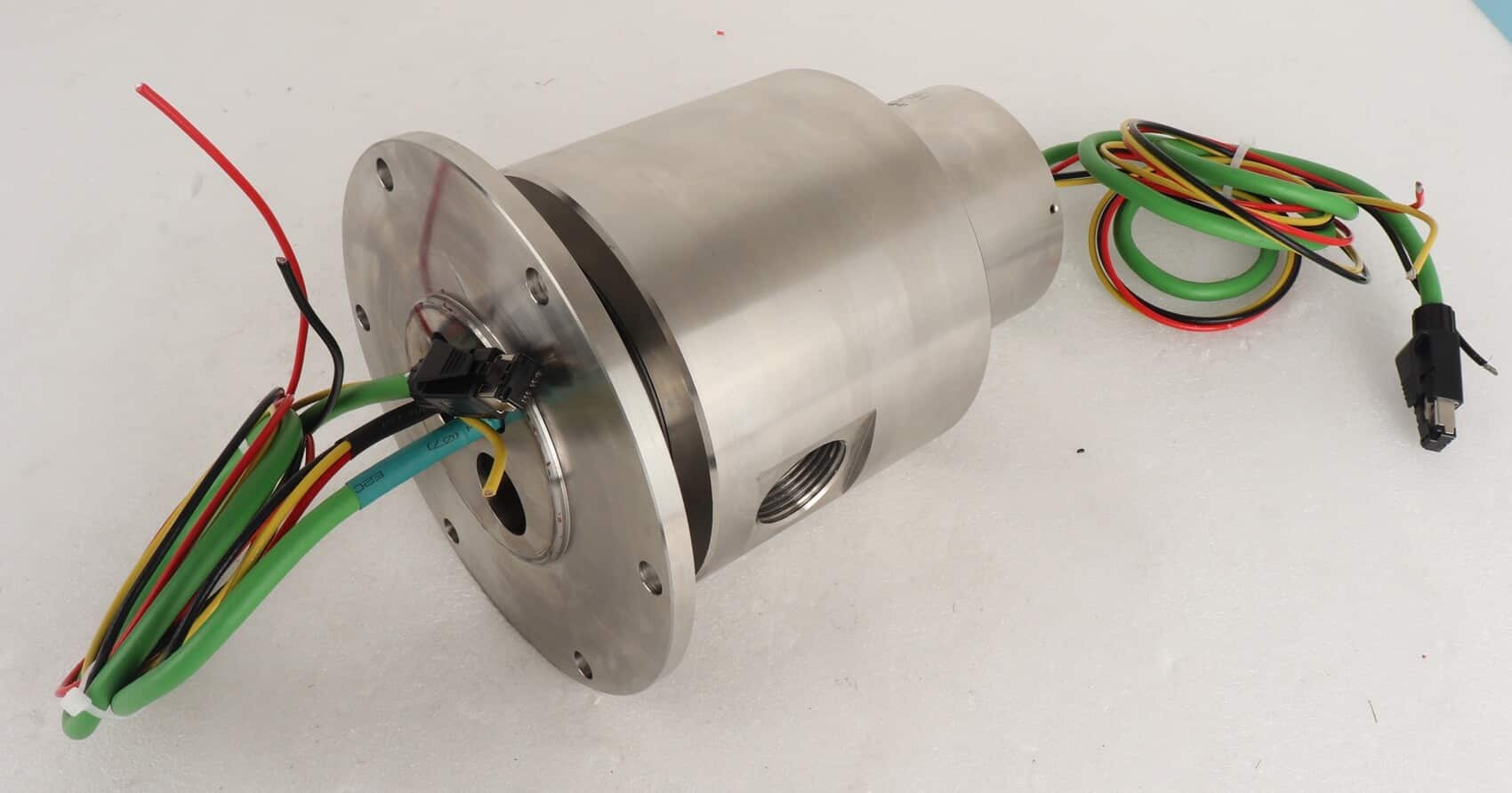

Electrical + Fluid Integration Slip Rings
Pass power wires, data signals, air hoses, and oil pipes through one single 360° rotating joint without twisting cables.
Why Use One Combined Unit Instead of Two Separate Parts?
In the past, engineers had to install an air joint on top of an electric slip ring. This made the whole setup way too long, took up too much space, and put heavy strain on the rotating shaft.
JARCH integrated slip rings put air/liquid channels and electric wires inside one compact body. This cuts installation space by 30% to 50% and eliminates cable twisting completely.
Old Separation Way vs. JARCH Integrated Way
1. Save Installation Space
Old Way: Stacked parts make the shaft very long and hard to fit inside small machines.
JARCH Way: Built together in one housing. Cuts length in half and fits tight robot arms.
2. No Oil/Water Leaking to Wires
Old Way: If liquid leaks from a separate joint, it runs right into your electric wires.
JARCH Way: Has a built-in safety drain hole. Any leak drips outside before touching electric parts.
3. Clean Signal & Zero Data Loss
Old Way: Strong power cables disturb weak Ethernet or encoder data signals.
JARCH Way: Inside metal walls block electric noise so motor and camera signals stay clean.
Detailed Product Specifications
Check the technical details below to see what your machine needs:
| Category | Standard Range | Custom Options Available |
|---|---|---|
| Air / Gas Passages | 1 to 24 Channels; Air, Vacuum (-100kPa to 1.6 MPa); G1/8", G1/4", G3/8" | M5 fittings, NPT threads, stainless steel tubes |
| Liquid / Oil Passages | 1 to 24 Channels; Water, Coolant, Hydraulic Oil up to 35 MPa (350 Bar) | High-pressure PTFE seals for continuous hydraulic drive |
| Electric Power Circuits | 2 to 100 Wires; 10A, 15A, 30A up to 80A per circuit; 0-440V AC/DC | Higher current up to 600A, special plug connectors |
| Signal & Data Support | Sensors, Control wires, Gigabit Ethernet, ProfiNet, Servo Encoder | Fiber optic channels (FORJ) combined in the center |
| Speed & Temperature | Rotation Speed: 0 to 300 RPM; Temp Range: -30°C to +80°C | IP65 water-proof seals, high-speed options up to 800 RPM |
How to Choose the Right Slip Ring for Your Machine
When you contact us for a drawing or quote, simply tell us these 4 things:
- What media are you passing? (e.g., Compressed air, water, or 210 bar hydraulic oil)
- How many fluid channels and hose sizes do you need? (e.g., 2 channels of G1/4" air ports)
- How many electric wires and what current? (e.g., 6 wires for 10A power + 4 wires for encoder)
- What is your rotation speed (RPM) and space limit?
Where Are These Combined Slip Rings Used?
Robot Grippers (EOAT)
Passes compressed air to push pneumatic cylinders while sending sensor and valve control signals to the robot arm.
Bottle Filling Machines
Transfers liquid/beverage and blowing air together with electric heating power on 360° rotating carousels.
Excavators & Cranes
Routes high-pressure oil to lower track motors while passing light power and CANbus signals to the lower frame.
When installing this slip ring, do NOT fix both the rotor shaft and the outer body tightly at the same time. Always use a flexible anti-rotation tab on the outer shell. This lets the unit turn smoothly without putting bad strain on the inner bearings and seals.
Frequently Asked Questions
Q1: What if the liquid seal breaks? Will oil leak into the electric wires?
No. We build a small safety chamber with a drain hole between the liquid seals and the electric brushes. If a seal wears out, the oil or water drips outside through the hole. It will never touch or short-circuit your electric wires.
Q2: Can we pass Ethernet or encoder signals without losing data?
Yes. We use metal shields inside to separate power wires from signal wires. This keeps electric noise low (under 10 mOhm) so your motor signals and Ethernet run smoothly without data loss.
Q3: How do I fix the slip ring to my machine during installation?
Do not lock both the shaft and the outer body tightly at the same time. You must leave a little room on the anti-rotation bracket so the slip ring can turn freely without pressing too hard on the inner bearings.
