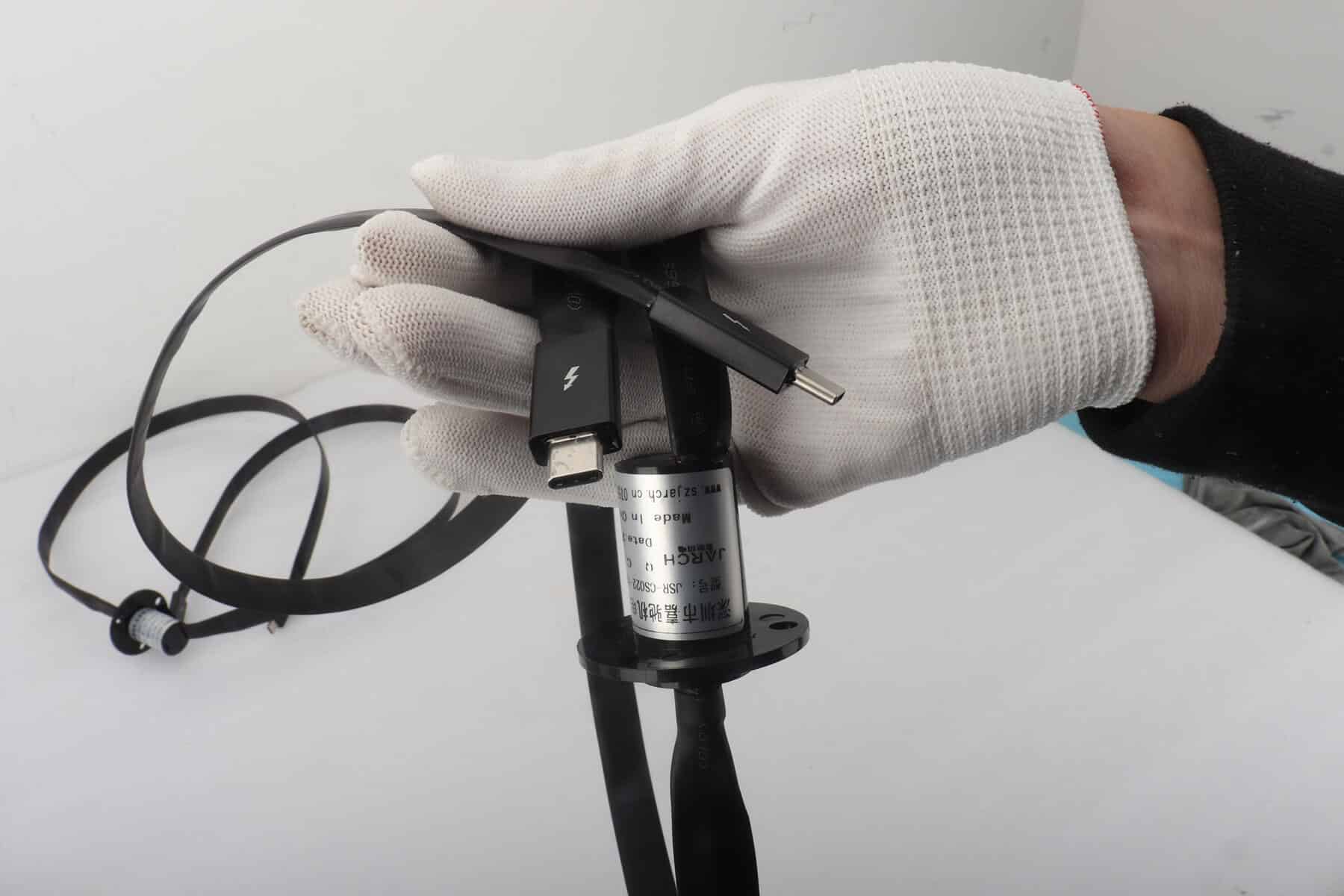

Zero-Loss USB 2.0 & USB 1.0 Slip Rings for 360° Continuous Rotation
Prevent USB camera disconnections and data frame loss. Engineered with strictly controlled 90Ω differential impedance, multi-layer EMI protection, and gold-to-gold contacts for uninterrupted 480 Mbps video & data transmission.
Solving the USB Signal Drop Problem in Rotating Equipment
Why don't standard slip rings work for USB high-speed cameras and sensors? USB 2.0 relies on high-frequency differential signals (D+ and D-). Conventional power slip rings distort signal waveforms, causing device recognition failure.
Every PCB trace and internal wire inside our USB slip ring maintains a continuous 90Ω differential impedance, eliminating signal reflections and packet dropouts.
When combining USB data with motor power (up to 20A), our internal copper shielding barriers isolate EMI noise to guarantee high Signal-to-Noise Ratio (SNR).
Precious gold alloy fiber brushes maintain dynamic contact noise under 5mΩ, preventing instant signal interruption even during 360° continuous rotation.
USB 2.0 / 1.0 Performance Specifications
Tested parameters for factory robotics, HD vision PTZ, and inspection devices
| Parameter | Technical Standard |
|---|---|
| Data Transfer Protocols | USB 2.0 High-Speed (480 Mbps), USB 1.1 / 1.0 (12 Mbps / 1.5 Mbps) |
| Channel Combinations | 1 ~ 2 Channels USB + 2 ~ 36 Circuits Power/Signal (2A, 5A, 10A, 20A) |
| Connector Options | Standard USB Type-A Male/Female, Type-C, Micro-USB, or Flying Leads |
| Structure Options | Capsule Miniature (OD 15.5mm~22mm) or Through-Bore (ID 12.7mm~50mm) |
| Operating Speed Range | 0 to 300 RPM (Custom high-speed options up to 600 RPM) |
| Housing & Protection Grade | Aluminum Alloy Housing, IP51 standard (Custom IP65 / IP67 available) |
Typical Applications for JARCH USB Rotary Joints
Transmits vision inspection USB camera feeds from end-of-arm tooling without wire twist.
Supports HD USB camera streaming in continuous pan-tilt surveillance systems.
Relays USB sensor and image data in rotating surgical lighting and endoscopic rigs.
Enables smooth USB data transfer for 360-degree rotating turntable photography setups.
USB Slip Ring Engineering FAQ
Clear answers regarding signal stability, lead wire length, and customization
Q1: Is JARCH USB 2.0 slip ring backward compatible with USB 1.1 and USB 1.0?
Yes, 100%. Our USB 2.0 slip rings naturally support USB 1.1 (12 Mbps) and USB 1.0 (1.5 Mbps) protocols. You can plug in legacy industrial sensors, bar code scanners, or USB 2.0 HD cameras without configuration.
Q2: What cable tail length can I use without losing USB signals?
Standard wire lead length is 300mm on rotor and stator ends. Because of our strict 90Ω impedance control, cable lengths up to 2–5 meters can be customized upon request while maintaining full 480 Mbps performance.
Q3: How do you prevent motor driver noise from interfering with USB data?
We implement multi-layer copper shielding plates and twisted-pair differential geometry inside the slip ring housing. Power wires and USB differential lines (D+/D-) are physically separated to block EMI noise.
Q4: Can I integrate air or hydraulic lines with the USB slip ring?
Yes. We can combine USB 2.0 circuits with pneumatic/hydraulic rotary joints using our through-bore designs, allowing compressed air or cooling fluid to pass through the hollow shaft center.
Get Custom USB Slip Ring CAD Drawings & Pricing
Need a customized inner hole size, special connectors, or mixed power channels? Our factory engineers respond within 24 hours.
