Custom Slip Rings Designed for Your Application
Transfer power, signals and data between stationary and rotating parts. Choose a standard model or request a custom design.
Continuous Rotation. Without Twisted Cables.
SLIP RING INSTALLATION / STATIONARY & ROTATING CONNECTIONS
SLIP RING BASICS
What Is a Slip Ring?
A slip ring transfers electrical power, signals and data between stationary and rotating parts, allowing continuous rotation without twisting cables.
Continuous Rotation
The rotor turns with the equipment while the stator remains fixed. Sliding contacts maintain the electrical connection during rotation.
Power, Signals & Data
Supply rotating motors and sensors with power, and transmit control signals or data. The circuit design must match the electrical ratings and signal requirements.
Select by Your Specifications
Check circuit count, current, voltage, signal type, speed, mounting space and operating environment before choosing a model.
START WITH WHAT YOU NEED TO TRANSFER
Which Product Type Do You Need?
Electrical contacts transfer electricity. Optical rotary joints transfer light. Rotary unions transfer air or liquid.
| Transfer requirement | Product type |
|---|---|
| Power, control signals or Ethernet | Electrical Slip Rings → |
| Optical signals | Fiber Optic Rotary Joints → |
| Compressed air, water or oil | Rotary Unions → |
| Electrical + air or liquid | Hybrid Assemblies → |
OUR PRODUCT RANGE
Slip Rings & Rotary Unions
Browse slip rings by mounting type, transmission function and operating environment. Rotary unions transfer air or liquid; hybrid assemblies combine electrical and media transfer.

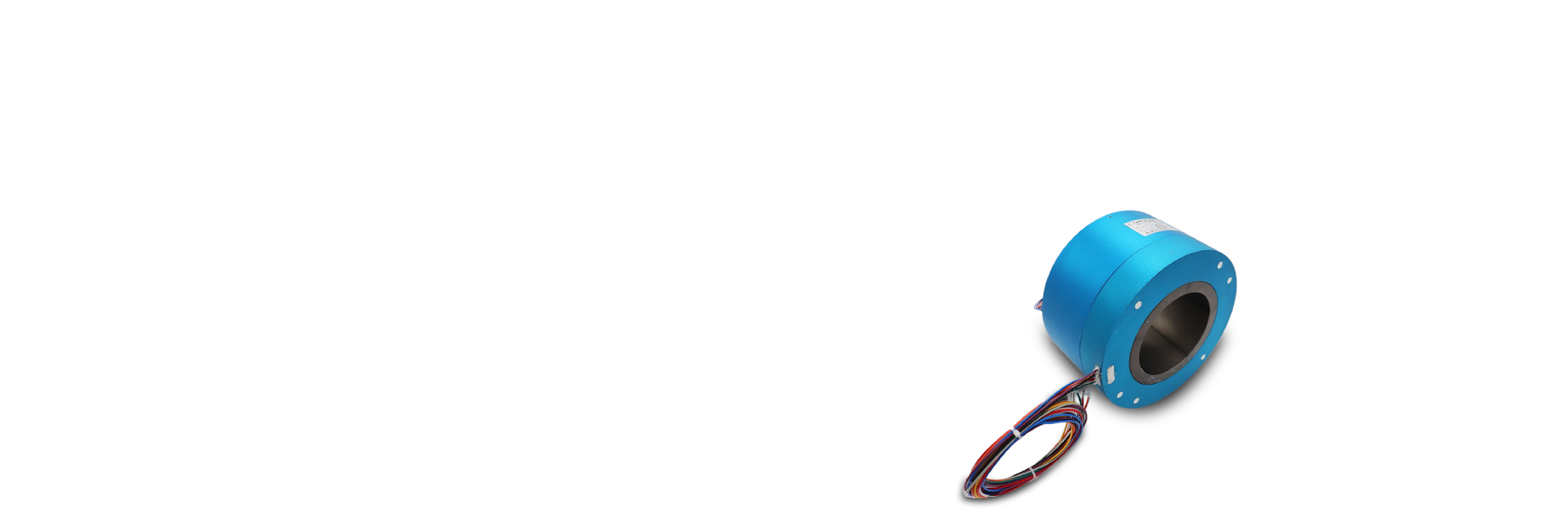

Through Bore Slip Rings
A central bore fits around a shaft or provides space for cables and tubes
Flange Slip Rings
A mounting flange secures the slip ring to your equipment
Ethernet Slip Rings
Transmit Ethernet data during rotation; specify data rate and connector type
Servo / Encoder Slip Rings
Transfer servo power and encoder feedback; specify the motor and signal interface
Fiber Optic Rotary Joints
Transmit optical signals between stationary and rotating fibers
Waterproof Slip Rings
Sealed designs for wet conditions; specify the IP rating and water exposure
Explosion-proof Slip Rings
Enclosed designs for specified hazardous locations; confirm the hazard classification and required approvals for the model
Electric + Air Slip Rings
Transfer electrical power or signals and compressed air in one assembly
Air + Power + Ethernet
Combine compressed air, electrical power and Ethernet in one rotating assembly
Liquid + Power + Ethernet
Combine liquid transfer, electrical power and Ethernet; specify the liquid and pressure
Custom Slip Rings
Specify dimensions, circuits, electrical ratings, connectors and media passages
Pneumatic Rotary Unions
Transfer compressed air between stationary piping and rotating equipment
SLIP RING & ROTARY UNION SELECTION
How to Select a Slip Ring
or Rotary Union
Start with what you need to transfer: electricity, optical signals, air or liquid. Then check the required ratings, speed, installation size and environment.
Transmission Requirements
List power circuits, current and voltage. Identify signal interfaces, Ethernet data rate or optical channels. For air or liquid, specify the medium and pressure.
Determines the electrical and media configurationInstallation & Rotation
Provide the bore, maximum outer diameter and length, mounting method, rotation speed and operating duty. A drawing helps confirm the available space.
Determines the structure and mounting fitOperating Environment
Describe temperature, dust, rain, spray, immersion and corrosion exposure. Include any required IP rating and product approvals.
Determines protection and material requirementsPrepare the circuit count, current, voltage, signal types and data requirements.
View Electrical Slip Rings →What Is a Slip Ring and How Does It Work?
Learn how a slip ring maintains an electrical connection during rotation and prevents cable twisting.
Watch on YouTube →How to Choose a Slip Ring
or Rotary Union
Use a slip ring for electrical transfer, a rotary union for air or liquid, and an integrated assembly when both are required.
Watch on YouTube →Specifications Needed for Selection & a Quote
For air or liquid transfer: Specify the medium, number of passages, operating pressure, flow rate, temperature and port size.
For electrical circuits, list the current and voltage for each group. For Ethernet or encoder signals, include the protocol, data rate or interface. Send a drawing, existing model number or equipment photos if available.
Send Specifications for a Quote →SLIP RING & ROTARY UNION APPLICATIONS
Power, Data & Media
for Rotating Equipment
Explore eight equipment applications. See what crosses the rotating interface and which specifications help define the right product.
Ethernet Slip Rings / Electric + Air Slip Rings
Configuration selected for your equipmentAPPLICATION REQUIREMENTS
Packaging Machinery
Rotating wrapping heads, indexing tables and rotary machine sections
Motor power, sensor signals, Ethernet and compressed air where required
Data protocol and rate; power circuit ratings; air pressure and flow; mounting space; speed and duty cycle
Keep power, data and pneumatic requirements in one specification. Confirm the interface to the rotating machine section.
Servo / Encoder Slip Rings / Custom Slip Rings
Configuration selected for your equipmentAPPLICATION REQUIREMENTS
Robotics & Automation
Rotary tables and robot axes that require continuous rotation
Servo motor power, encoder feedback and control or network data
Motor and encoder interfaces; shielding; connector type; bore and outer diameter; speed and duty cycle
Confirm the exact signal interface and cable arrangement. Power ratings alone do not describe an encoder or data channel.
Through Bore Slip Rings / Custom Slip Rings
Configuration selected for your equipmentAPPLICATION REQUIREMENTS
Cable Reels & Winches
Cable drums that rotate while the connected equipment remains powered
Power, control circuits and data through the reel shaft
Current and voltage; cable circuits; bore; reel speed; continuous or intermittent operation; cable exits
Match the rotary connection to the reel shaft and the cable circuit layout. Confirm mounting and strain relief.
Servo / Encoder Slip Rings / Hydraulic Rotary Unions
Configuration selected for your equipmentAPPLICATION REQUIREMENTS
Machine Tools & Rotary Tables
Rotary indexing tables, rotating fixtures and machine assemblies
Motor power, encoder signals and coolant or hydraulic media where required
Signal interface; mounting space; speed; medium, pressure and flow; port arrangement
List each electrical circuit and media passage separately. Check the rotary connection against the table or fixture interfaces.
Waterproof Slip Rings / Fiber Optic Rotary Joints
Configuration selected for your equipmentAPPLICATION REQUIREMENTS
Marine & Outdoor Equipment
Reels, winches and other rotating equipment exposed to water
Power and control circuits; data or optical channels when required
Rain, spray or immersion; immersion depth and duration if applicable; corrosion exposure; temperature; mounting details
Specify the actual water exposure and material requirements. An IP rating should be reviewed against the installation conditions.
Hydraulic Rotary Unions / Hybrid Slip Rings
Configuration selected for your equipmentAPPLICATION REQUIREMENTS
Heavy Machinery
Rotating platforms and assemblies with electrical or hydraulic connections
Electrical power and control; hydraulic media where required
Current and voltage; hydraulic medium, pressure and flow; rotation speed; vibration; mounting and load conditions
Review electrical transfer and hydraulic requirements together. Confirm how the assembly is mounted and mechanically supported.
Custom Slip Rings / Ethernet Slip Rings
Configuration selected for your equipmentAPPLICATION REQUIREMENTS
Wind Energy
Rotating turbine assemblies, including connections to the hub and pitch system
Power, control signals and network data as required by the system
Circuit ratings; control interfaces; speed; temperature; vibration; moisture; maintenance requirements
Review the turbine system specification and required qualification checks. Product suitability must be confirmed for the actual installation.
Ethernet Slip Rings / Fiber Optic Rotary Joints
Configuration selected for your equipmentAPPLICATION REQUIREMENTS
CCTV & PTZ Camera Systems
Continuous-pan camera platforms and rotating inspection units
Power and video or network data across the rotating axis
Video or network interface; Ethernet rate; circuit ratings; installation space; speed; outdoor exposure
Confirm how video is transmitted: Ethernet, a separate electrical interface or fiber. Select the rotary connection for that interface.
Typical application examples, not customer project records. The schematics show equipment functions; suitability and any qualification requirements are reviewed for each installation.
CUSTOM ENGINEERING & MANUFACTURING
Custom Slip Rings
Designed to Your Specifications
A custom design starts with defined requirements: electrical circuits, data interfaces, media passages, mounting dimensions and operating conditions.
YOUR DESIGN INPUTS
Define the Connections
and the Installation Space
Circuit count, current, voltage and signal types
Ethernet or optical requirements; air or liquid passages
Bore, outer diameter, length, mounting and connectors
Speed, duty cycle, temperature and required protection
MOUNTING INTERFACECIRCUITS & SIGNALSCABLES & CONNECTORSProduct example — dimensions and interfaces are defined for each design
Requirement Review
Check the application, circuits, transmission requirements and installation limits.
Define the specificationDrawing Confirmation
Review the proposed dimensions, mounting method, cable exits and interfaces.
Confirm the design before manufactureManufacturing & Assembly
Machine and assemble the components to the confirmed configuration.
Build the agreed productInspection & Verification
Agree the electrical, rotation, media and documentation checks needed for the model.
Confirm the applicable inspection scopeConfiguration · drawing · interfaces · inspection requirements · quantity · delivery schedule
This is a design workflow illustration. Final dimensions, applicable tests, documents and lead time depend on the agreed configuration.
BEFORE YOU BUY
Slip Ring
Questions & Answers
Answers to common questions about electrical transfer, mounting and custom selection.
View More Technical Questions →What is the difference between a slip ring and a rotary union?
A slip ring transfers electrical power, signals or data through a rotating interface. A rotary union transfers air or liquid. An integrated assembly can combine both functions.
Can a slip ring transmit Ethernet?
Yes, when the electrical contact system is designed for the required Ethernet connection. Specify the data rate, number of channels, cable and connectors; these requirements cannot be inferred from the circuit count alone.
How do I select a through bore slip ring?
Confirm the required bore diameter, available outer diameter and length, mounting method, speed, circuits and environment. The bore dimension alone does not determine whether a model is suitable.
Can power, data and compressed air be combined?
Yes. Electrical slip rings and pneumatic rotary unions can be integrated in one assembly. Provide electrical ratings, data interfaces, air passage count, pressure, flow rate and port size.
What should I send for a custom slip ring quote?
Send your application, circuit list, current and voltage, signal and data requirements, dimensions, speed, environment, quantity and desired delivery date. Include drawings or photos if available.
Can I request a quote before every specification is confirmed?
Yes. Share what you know and identify the details still to be confirmed. Final product selection, price and delivery schedule depend on the agreed configuration.
CONTACT JARCH
Send Your Specifications
for a Quote
Fill in the details you know. Leave unknown items as “to be confirmed” and include a drawing, existing model or equipment photos when you contact us.
Open Contact Page →Final model, price and lead time are confirmed after reviewing the configuration.
Equipment, dimensions, mounting, speed and operating conditions
02 / ELECTRICAL REQUIREMENTSPower circuits, signals, data interfaces and cable connections
03 / ORDER & DESIGN REVIEWQuantity, delivery, drawings and any required documents
Fill in what you know. Write “to be confirmed” for unknown values. Include units. Optional items can be left blank.
