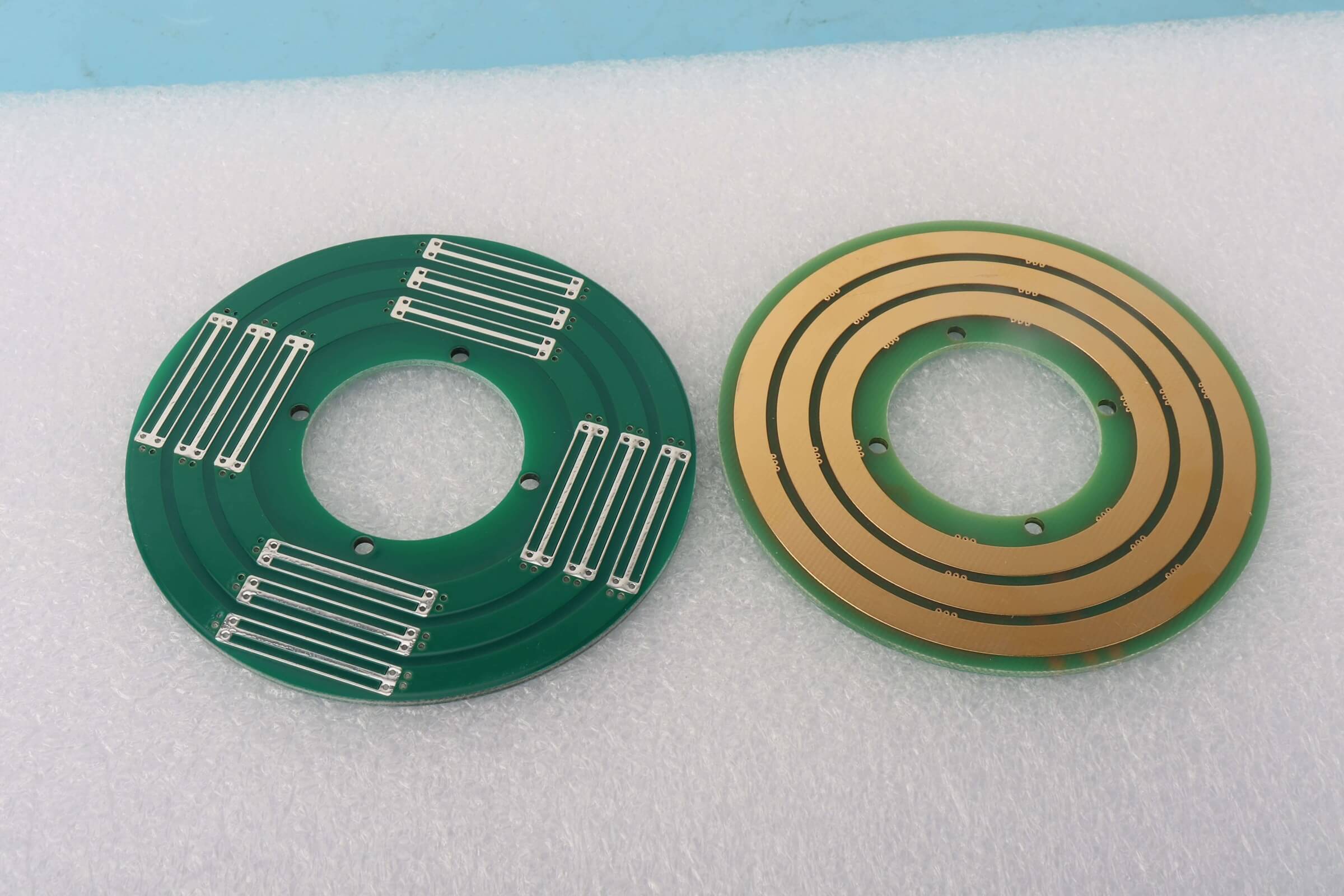

PCB Slip Rings: Ultra-Thin Pancake Rotary Solutions
Made for machines with very small vertical space. Our PCB slip rings use flat copper circuit boards and gold contacts to pass power and signals smoothly without stopping rotation.
What is a PCB Slip Ring and How Does It Work?
A PCB slip ring (also called a flat slip ring or pancake slip ring) is an electrical part used to pass power and data from a fixed part to a 360° turning part.
Normal slip rings stack copper rings like a tall tube. PCB slip rings print flat copper rings onto a circuit board (like a flat disc). Metal brushes touch these flat rings while turning to keep electricity flowing in tiny spaces.
Separated Type (Rotor & Stator)
The turning disc and fixed brush parts come separately. Best for super flat machines where total height must be under 5mm.
Integrated Type (With Housing)
The PCB and brushes are built inside an aluminum cover with bearings. Easy to install and keeps out dust.
Main Advantages of JARCH PCB Slip Rings
1. Super Thin Design
Solves height problems in small machines. Thick starting from just a few millimeters.
2. Gold-to-Gold Contacts
Uses gold plating on copper rings and brushes. Gives stable signal, very low electrical noise, and long life.
3. Clear Signal Protection
Special circuit board layout stops signal interference between power lines and data wires (Ethernet, CAN-bus, RS485).
4. Long Working Life
Can rotate over 10 million turns smoothly under normal use conditions.
Custom Services for Your Projects
Every machine design is different. As a direct manufacturer, JARCH provides flexible custom options to fit your exact requirements:
Outer diameter from 10mm to 500mm+. Inner hole can be added for shafts or pipes.
Combine power lines (up to 20A+) with data channels (Ethernet, USB, CAN-bus, Sensors).
High temperature designs, waterproof seals (IP65/IP67), and special PCB boards.
Free 2D/3D engineering drawings sent in 24 hours. Fast sample production available.
PCB Slip Rings vs. Standard Capsule Slip Rings
| Feature | PCB / Pancake Slip Ring | Standard Capsule Slip Ring |
|---|---|---|
| Height (Length) | Ultra-Thin (Starts from 5mm) | Taller Tube Shape |
| Diameter Size | Wider flat disc | Smaller outer diameter |
| Center Hole (ID) | Easy to add a hole for shaft/pipes | Usually solid shaft only |
Technical Specifications
| Circuits (Wires) | 1 to 50+ circuits (Power and Data mixed) |
| Current & Voltage | Signal to 10A per line; 0 ~ 240 VAC/VDC |
| Electrical Noise | Less than 10 mΩ |
| Contact Material | Gold to Gold |
| Board Material | FR-4 or Flexible Board |
| Rotation Speed | 0 ~ 300 RPM standard (Higher speed customizable) |
Where Are PCB Slip Rings Used?
Contact Us for Custom Drawings & Factory Prices
Need a special size or custom PCB slip ring? Tell us your size limits (outer diameter, inner hole, thickness), number of wires, current, and speed. Our factory engineers will reply with drawings and prices quickly.
Send your email to: info@slipringsupplier.com
